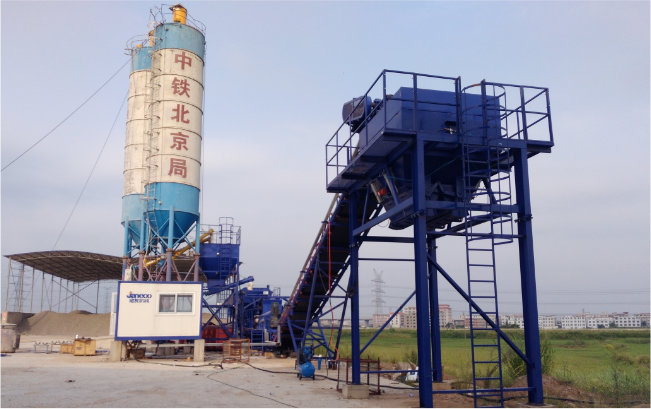

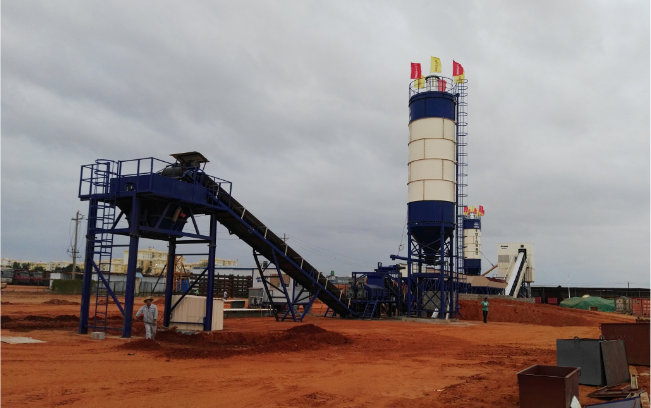

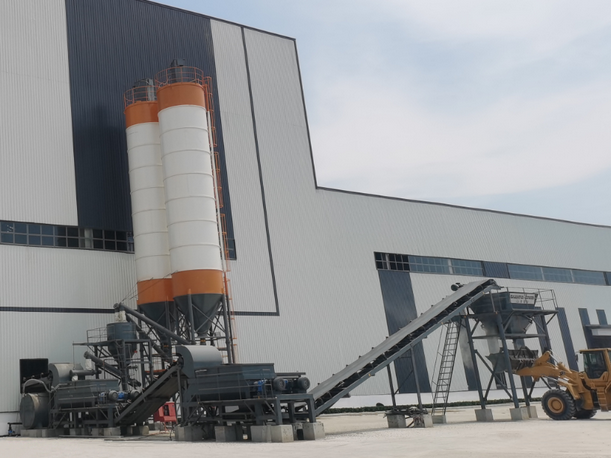

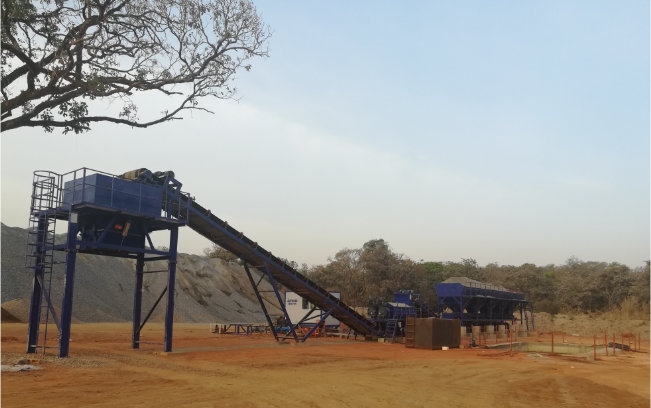

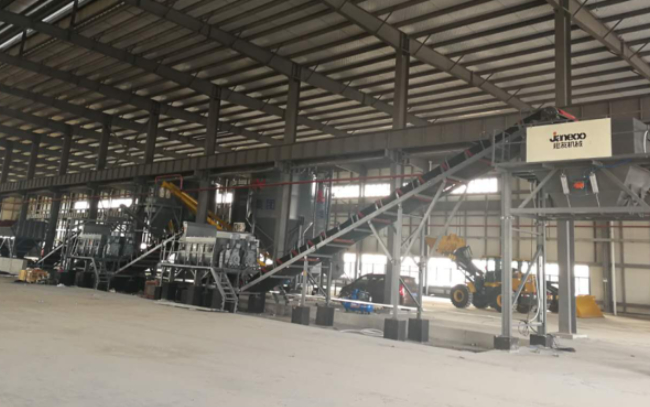

專家評測：安裝快 易維護 精度高 智能化適用于普通公路、高等級公路、高速公路及城市道路、運動場、機場、碼頭等基層穩定材料施工，能夠?qū)崿F(xiàn)連續生產多種攪拌均勻、配比準確的基層穩定材料。
● 模塊化結構，布置靈活、安裝快速、轉場方便
● 無襯板攪拌技術，維護簡單、使用方便
● 電子秤計量，變頻調速控制，粉料二次計量，精度更高
● 集中智能控制，實時監控物物料配比，管控細、效率高
| 型號 | WBZ300-3B | WBZ400-3B | WBZ500-3B | WBZ600-3B | WBZ700-3B | WBZ800-3B | WBZ10A-3B |
| 額定生產率(t/h) | 300 | 400 | 500 | 600 | 700 | 800 | 1000 |
| 攪拌主機 | —— | —— | —— | 2X37 | —— | —— | —— |
| 攪拌功率(kW) | 2X22 | 2X22 | 2X30 | —— | 2X37 | 2X45 | 2X75 |
| 骨料粒徑 | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 |
| 骨料倉容積(m3) | 3X12 | 3X12 | 4X12 | 5X12 | 5X12 | 5X15 | 5X15 |
| 皮帶機輸送能力(t/h) | 300 | 400 | 500 | 600 | 700 | 800 | 1000 |
| 骨料 | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| 水泥 | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| 水 | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| 整機功率(kW) | 110 | 110 | 137 | 157 | 157 | 193 | 262 |
| 卸料高度 | 3.6 | 3.6 | 3.6 | 3.6 | 3.6 | 3.6 | 3.6 |
| 型號 | WBZ300-3B | WBZ400-3B | WBZ500-3B | WBZ600-3B | WBZ700-3B | WBZ800-3B | WBZ10A-3B |
| 額定生產率(t/h) | 300 | 400 | 500 | 600 | 700 | 800 | 1000 |
| 攪拌主機 | —— | —— | —— | 2X37 | —— | —— | —— |
| 攪拌功率(kW) | 2X22 | 2X22 | 2X30 | —— | 2X37 | 2X45 | 2X75 |
| 骨料粒徑 | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 |
| 骨料倉容積(m3) | 3X12 | 3X12 | 4X12 | 5X12 | 5X12 | 5X15 | 5X15 |
| 皮帶機輸送能力(t/h) | 300 | 400 | 500 | 600 | 700 | 800 | 1000 |
| 骨料 | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| 水泥 | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| 水 | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| 整機功率(kW) | 110 | 110 | 137 | 157 | 157 | 193 | 262 |
| 卸料高度 | 3.6 | 3.6 | 3.6 | 3.6 | 3.6 | 3.6 | 3.6 |
